Wall-Mounted vs Ceiling-Mounted Picture Rails
Both systems hang the same artwork from the same adjustable hooks. The difference is where the track is fixed, how visible it is and what structure carries the load. Here is how to choose, what each costs installed, and how long the work takes.
The short answer
Which one should you choose?
Choose a wall-mounted picture rail for most Australian homes: it fixes just below the cornice or onto an existing timber rail and stays visually quiet. Choose ceiling-mounted track for full-height walls, concrete apartment slabs, stairwells and feature surfaces that should not be drilled. Both are supplied and installed from $80 per metre and both use hooks rated to 15 kg each.
The only real difference is the fixing line
Every picture rail system works the same way: a continuous aluminium track carries hanging cords, and each cord carries an adjustable hook. The cord slides sideways along the track, the hook slides up and down the cord, so any frame can be repositioned without a new hole in the wall.
What changes between the two options is where the load goes. A wall-mounted rail transfers weight into the wall structure — studs, top plate, brick or masonry. A ceiling-mounted rail transfers it into joists or a concrete slab overhead, leaving the wall completely untouched. That single decision drives appearance, wall damage, hanging drop and the fixings we use.
Side-by-side comparison
| Consideration | Wall-mounted | Ceiling-mounted |
|---|---|---|
| Fixes into | Studs, top plate, brick or masonry wall | Ceiling joists, top plate or concrete slab |
| Best for | Homes with a cornice or existing timber rail | Full-height, feature and gallery walls |
| Rooms | Living rooms, hallways, bedrooms, heritage interiors | Apartments, stairwells, voids, offices, galleries |
| Appearance | A slim line at the top of the wall | Track sits above the main sightline |
| Wall damage | A small number of fixings in the wall | No wall fixings at all |
| Hanging drop | Wire starts below the cornice line | Wire runs the full wall height |
| Weight per hook | Up to 15 kg | Up to 15 kg |
| Supplied and installed | From $80 per metre | From $80 per metre |
Option one

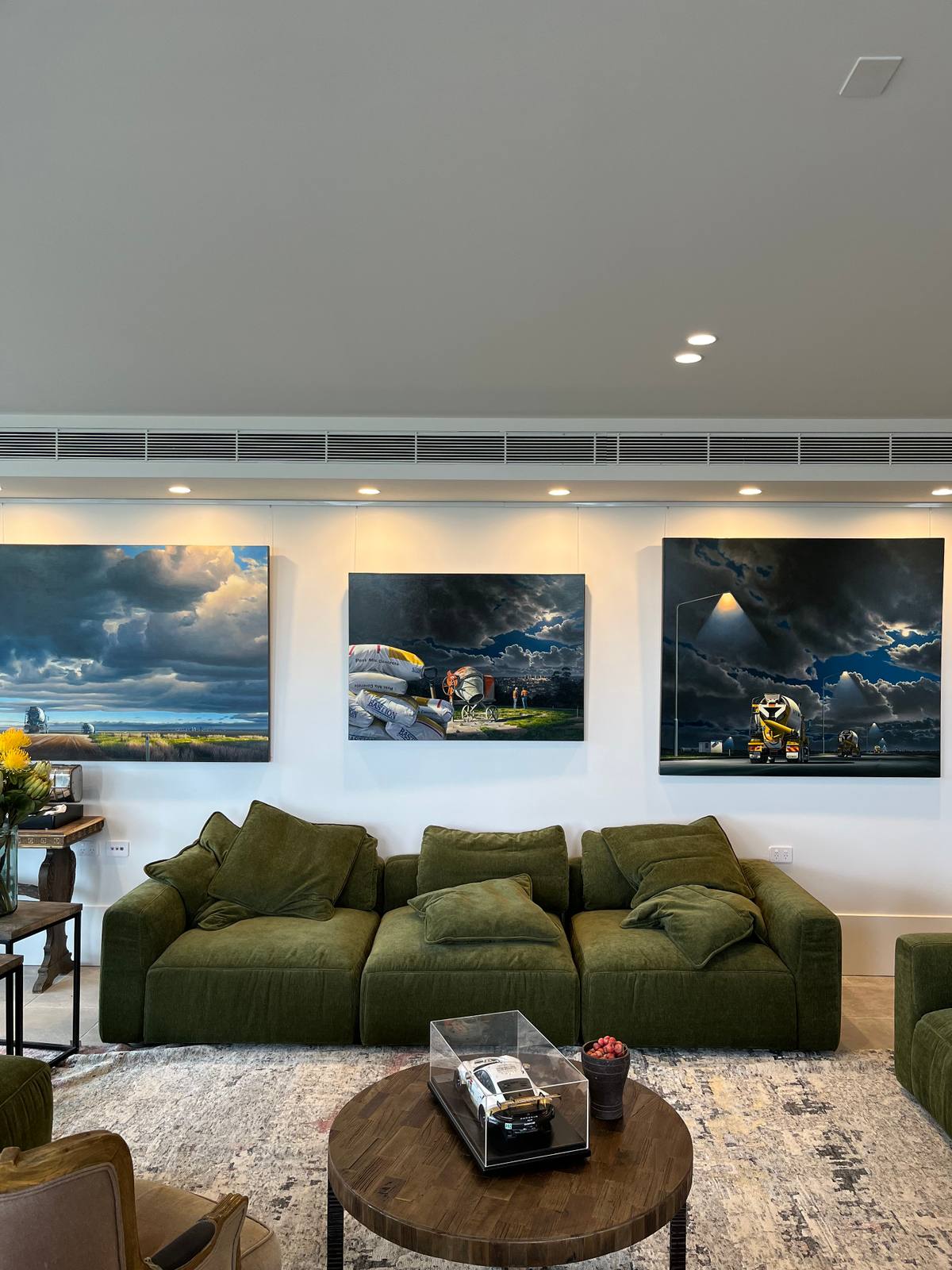

When a wall-mounted rail is the right call
This is the option we install most often in houses, terraces and renovated apartments. The track sits just below the cornice, or replaces the hanging function of an existing heritage timber picture rail, and can be painted to match the wall so it reads as a shadow line rather than hardware.
- There is a cornice or existing timber rail
- Ceilings are ornate, raked or pressed metal
- The wall is brick, masonry or framed and solid
- You want a shorter, tidier wire drop
- The ceiling cannot be drilled or accessed
- You want the track painted into the wall colour
Read more about wall-mounted picture rail systems.
Option two

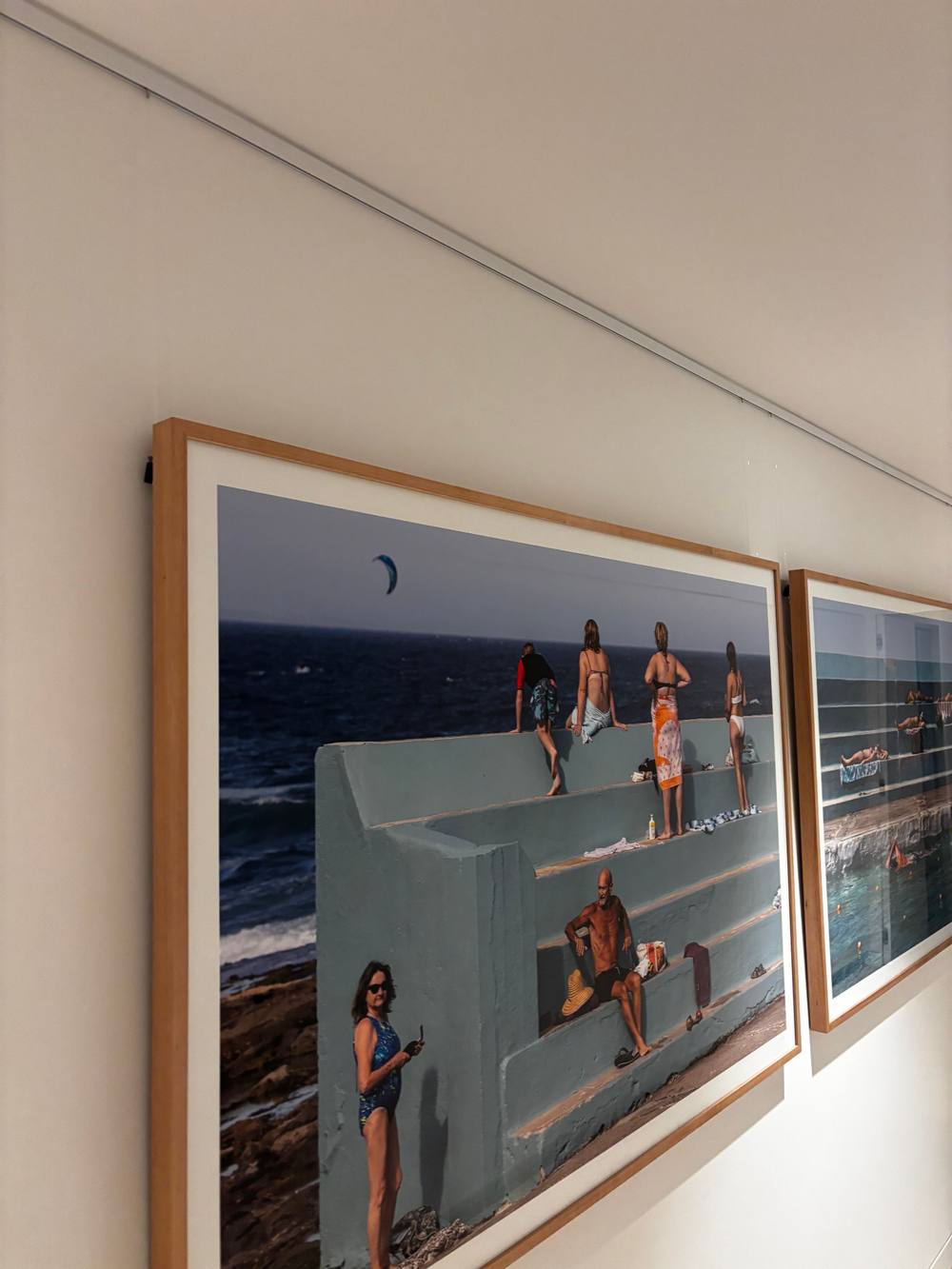

When a ceiling-mounted rail is the right call
Ceiling mounting is the gallery standard, and it is often the only option in apartments and commercial fitouts where the walls are shared, structural or simply not to be touched. Fixed into joists or a concrete slab, the track sits above the sightline and the wire runs the full height of the wall, which suits very large or stacked arrangements.
- Full-height walls with no cornice
- Concrete slab apartments and strata buildings
- Stairwells, voids and double-height rooms
- Stone, rammed earth or feature walls to stay unmarked
- Galleries, offices, hotels and rotating displays
- Recessed or shadow-line ceiling details
Read more about ceiling-mounted picture rail systems and gallery hanging systems.
What each option costs installed
Mounting position does not change our supply and install rate. Both wall-mounted and ceiling-mounted track start from $80 per metre, with wires and hooks added according to how many pieces you are hanging and how heavy they are. If you would like us to plan and hang the collection as well, artwork positioning is $180 + gst per hour — or we will show you how to use the system so you can rearrange it yourself.
From $80
Per metre, supplied and installed
$180 + gst
Per hour for artwork positioning
15 kg
Per hook, either mounting type
What genuinely moves the price is length of track, ceiling height, access, number of corners and the substrate behind the finish. Ceiling work at height or anchoring into concrete takes longer, so labour can be higher even at the same rate per metre. See the full picture rail cost guide for a transparent breakdown.
How long does each take to install?
As a practical guide, our installers fit about 4 to 5 metres of track per hour for either mounting type. A single 5 metre living room run is usually a short morning including setting out, levelling and hanging the first pieces. Add time for high ceilings requiring a platform, concrete anchoring, mitred corners or a large collection to position.
“I had a very complicated task which involved hanging a very large picture above my kitchen void which sat above 3m high and the guys did a fantastic job.”
Four questions that settle the decision
- 1
Is there a cornice or existing rail?
If yes, a wall-mounted track almost always looks the most natural and keeps the wire drop short.
- 2
What is the wall made of, and may it be drilled?
Shared, structural, stone or feature walls point straight to ceiling mounting.
- 3
How tall is the wall?
Full-height and double-height walls benefit from the longer drop only a ceiling track provides.
- 4
How often will the display change?
Frequent rotations favour a longer continuous run with spare hanging points, whichever line you choose.
Still unsure? Send us a photo of the wall and we will tell you which line we would use. If you are new to rail systems, start with the complete Australian guide to picture rail systems.
Quick answers
Common questions
- Is a wall-mounted or ceiling-mounted picture rail better?
- Wall-mounted track suits most homes: it fixes just below the cornice or onto an existing timber picture rail and reads as a slim line at the top of the wall. Ceiling-mounted track suits full-height walls, concrete slabs, feature surfaces that should not be drilled, and rooms with no cornice.
- Does a ceiling-mounted picture rail cost more than a wall-mounted one?
- Both are supplied and installed from $80 per metre. The final price depends on track length, ceiling height, access, corners and substrate rather than the mounting position itself. Ceiling work at height or into concrete can take longer, which can affect the labour component.
- Can a picture rail be ceiling-mounted in an apartment?
- Yes. Ceiling-mounted track is regularly fixed into concrete slabs in apartments and commercial buildings using anchors selected for the slab. It is often the preferred option in strata properties where the walls are shared or must stay unmarked.
- Do you need a cornice for a wall-mounted picture rail?
- No. A wall-mounted rail can sit just below a cornice, at any chosen height on the wall, or on an existing heritage timber rail. Without a cornice we set the track at a clean, level line that suits the room proportions.
- How long does installation take?
- As a guide, installing 4 to 5 metres of track takes about one hour. Ceiling height, access, corners, substrate and whether we also position the artwork change the total time on site.
- How much weight can each system hold?
- Both mounting types use the same adjustable hooks rated to 15 kg per hook. Heavier pieces can be carried on two or more hooks and wires, provided the track, anchors and substrate suit the combined load.
Expert review
Based on real installations
This comparison was written and reviewed by Professional Picture Hanging, whose own trained installers fit wall-mounted and ceiling-mounted rail systems across nine Australian regions. Last reviewed 23 September 2026.
